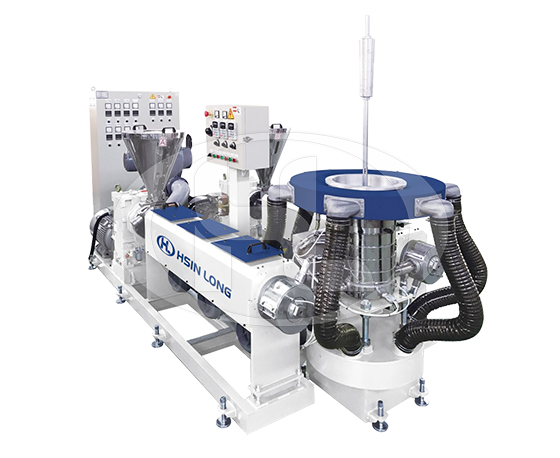

ABA / Double Die Extruders
The main characteristics of these kind of Extruder is available to use two or more materials to manufacture film. HSIN LONG supply customized machine specifications for different output, material, film width, film thickness. Further, it reduces the waste of material cost since it allows to add CaCo3, recycled material and color masterbatch in the middle layer for different using.
- Fast material change
- Material cost reduction
- Customized services for blown film machines with different film width
Specification
| Model | HL45 Extruder | HL55 Extruder | HL65 Extruder |
|---|---|---|---|
| Material To Be Used | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE |
| Layflat Film Width | MAX : 550 mm | MAX : 900 mm | MAX : 1100 mm |
| Extrusion Output | MAX : 38 ~ 45 kg/hr | MAX : 60 ~ 80 kg/hr | MAX : 120 ~ 140 kg/hr |
| Film Thickness |
HDPE : 0.015 mm ~ 0.15 mm LDPE: 0.02 mm ~ 0.2 mm |
HDPE : 0.015 mm ~ 0.15 mm LDPE: 0.02 mm ~ 0.2 mm |
HDPE : 0.015 mm ~ 0.15 mm LDPE: 0.02 mm ~ 0.2 mm |
| Extruder | |||
| Screw Dia | 45mm, L/D = 30:1 | 55mm, L/D = 30:1 | 65mm, L/D = 30:1 |
| Gear Box | 20 HP | 30 HP | 50 HP |
| Driving Motor | 20 HP | 30 HP | 50 HP |
| Air Cooling Fan | 2 pcs | 3 pcs | 4 pcs |
| Extrusion Die & Cooling Equipment | |||
| Die Head | HDPE : 50 ~ 80 mm | HDPE : 90 ~ 120 mm | HDPE : 150 ~ 180 mm |
| Filter | 45 mm | 55 mm | 65 mm |
| Air Blower | 3 HP | 5 HP | 7.5 HP |
| Control Panel | |||
| Type | Individual Box | Individual Box | Individual Box |
| Heating Zone | 5 Point Temperature Control | 6 Point Temperature Control | 7 Point Temperature Control |
